Model No. Of Tines Weight Volume Jaw Opening
    (kg) (l) (mm)
B4T16-050SC 4 1,360 380 1,830
B5T16-050SC 5 1,590 380 1,830
B4T16-075SC 4 1,400 570 2,030
B5T16-075SC 5 1,670 570 2,030
B4T16-100SC 4 1,510 760 2,210
B5T16-100SC 5 1,770 760 2,210
B4T16-125SC 4 1,630 1,000 2,390
B5T16-125SC 5 1,920 1,000 2,390
B4T16-150SC 4 1,680 1,150 2,410
B5T16-150SC 5 1,980 1,150 2,410

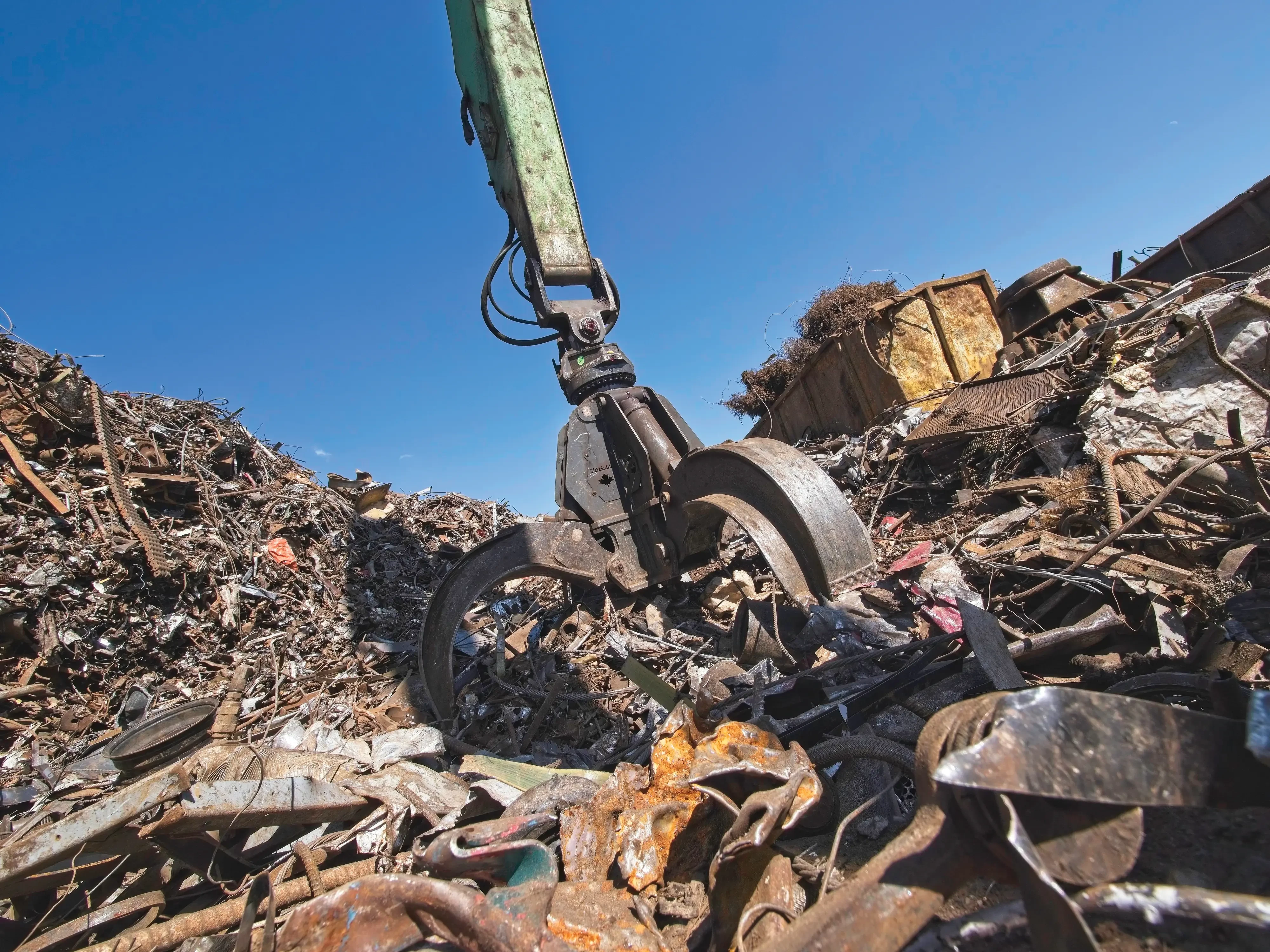

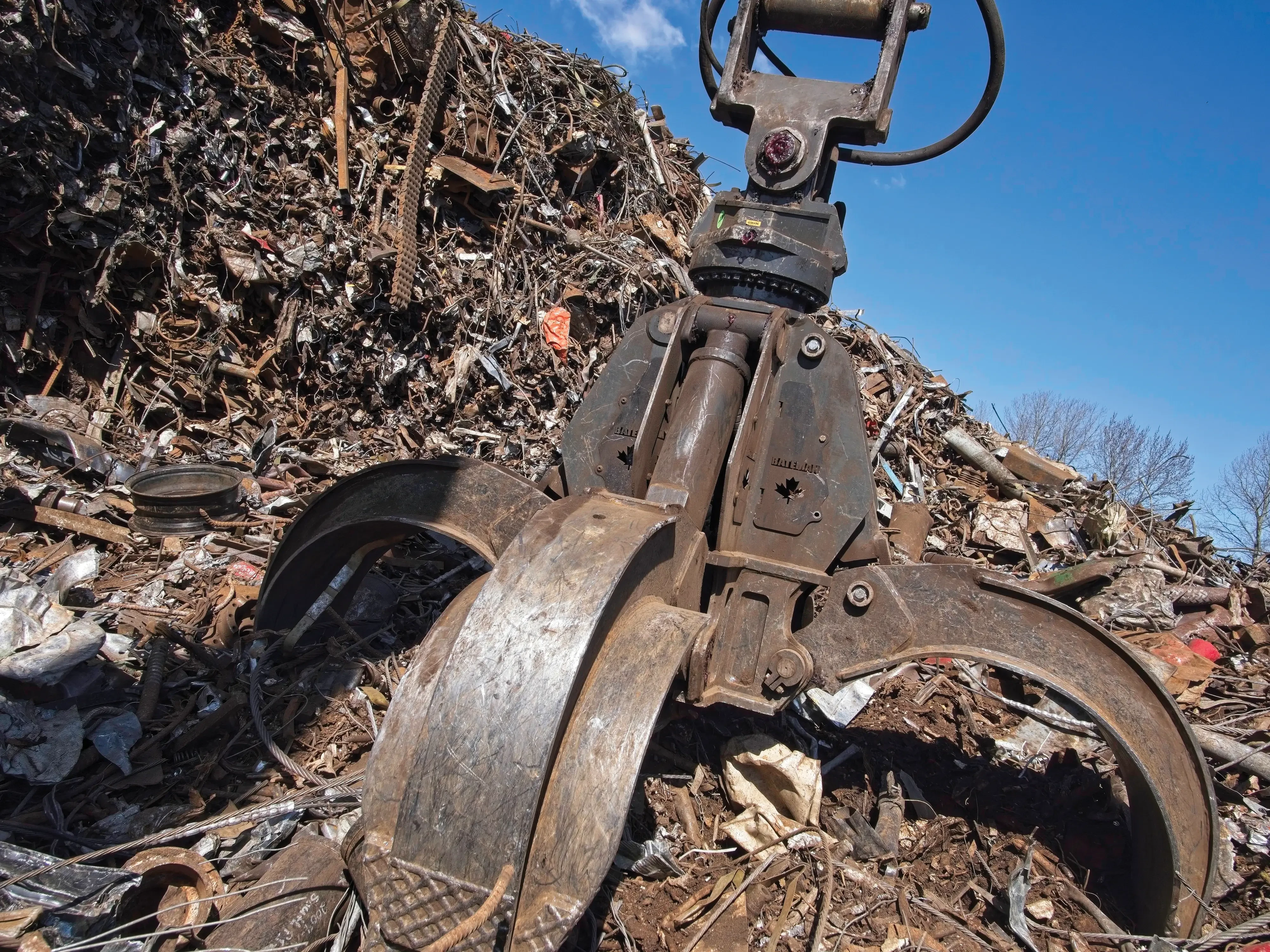

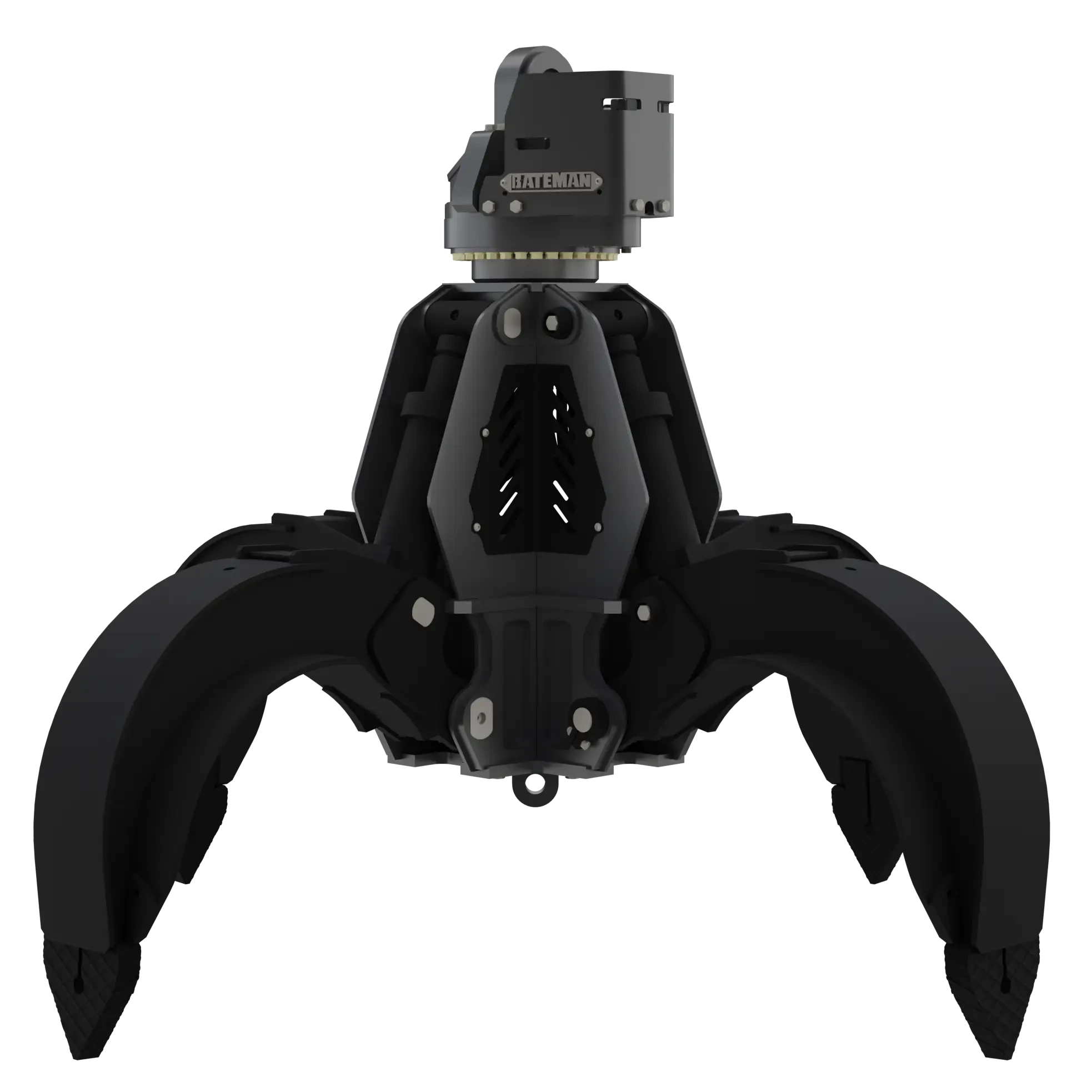

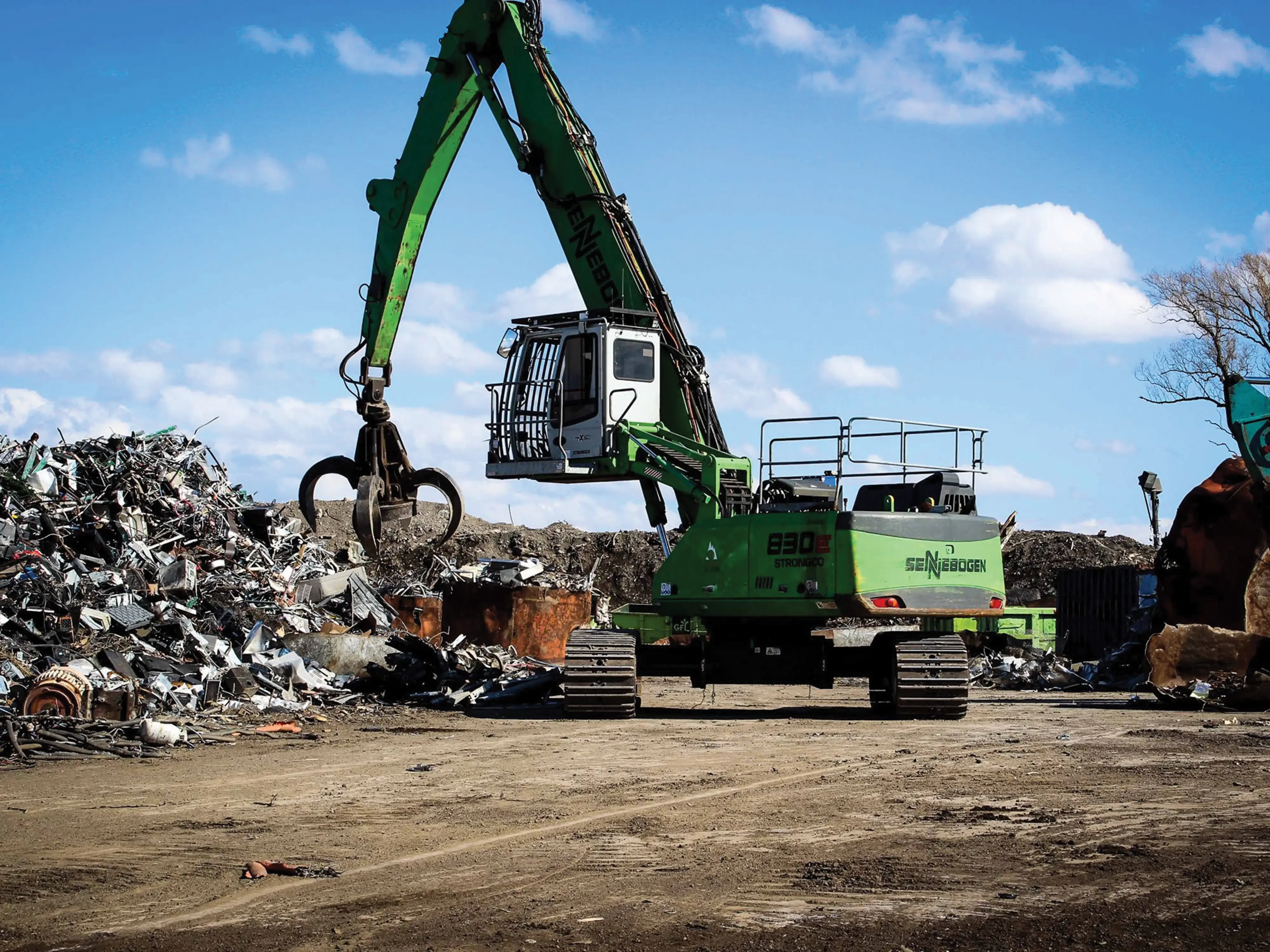

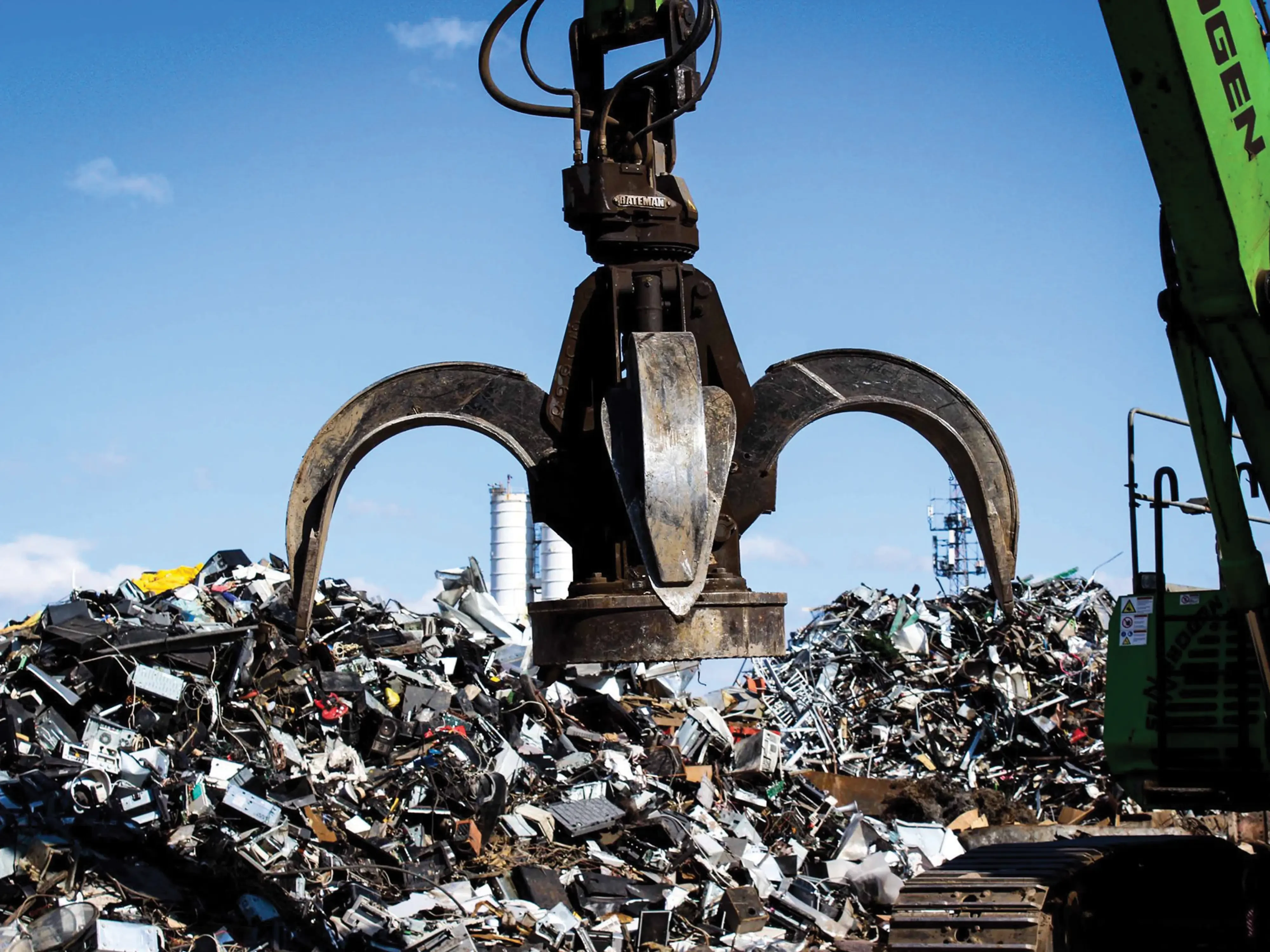

Orange Peel Grapples

Tough grapples for heavy loads

Work with increased confidence with Bateman’s orange peel grapples. Designed to provide the highest production rate and maximum durability these grapples are built to be the toughest in the industry. With innovative designs for greater impact protection, longer life, and optimised work time, Bateman’s grapples have been engineered to take power and precision further than ever.


  • Double wall cylinders include return oil channels, eliminating exposed hoses and risk of damage with fully enclosed cylinder guards and zero chrome exposure.
  • Robust body for added durability and greater cylinder protection as well as a heavy-duty frame design for better pin support and hose guarding.
  • Wide body design provides full cylinder protection with full protection to internal hoses and flange connections.
  • Superior tine design for optimal scrap penetration and material collection with hard facing on the tip area for added durability.
  • High abrasion-resistant tines designed with heavy duty backs and wear strips.
  • Large pin diameter and improved bushing design with seals for longer life and optimized work time.
  • Heavy-duty rotators with 360° continuous rotation with high-torque and high-capacity bearings.
  • Improved rotator guarding for greater impact protection.
  • Available in four or five tine configurations.
  • Available with magnet mounted at the base of the body.
