Specifications:

Model Excavator Size Weight Diameter Lifting Capacity - Slabs Lifting Capacity - Scrap
  (ton) (kg) (mm) (kg) (kg)
HMAG PRO 700 5 +  450 750 2,700 70
HMAG PRO 900 10 +  900 960 5,250 190
HMAG PRO 1200 18 +  1,550 1,260 7,500 360
HMAG PRO 1400 20 + 2,100 1,450 9,000 510

Resources

Attachments

Hydraulic Magnets

Mobile magnet power

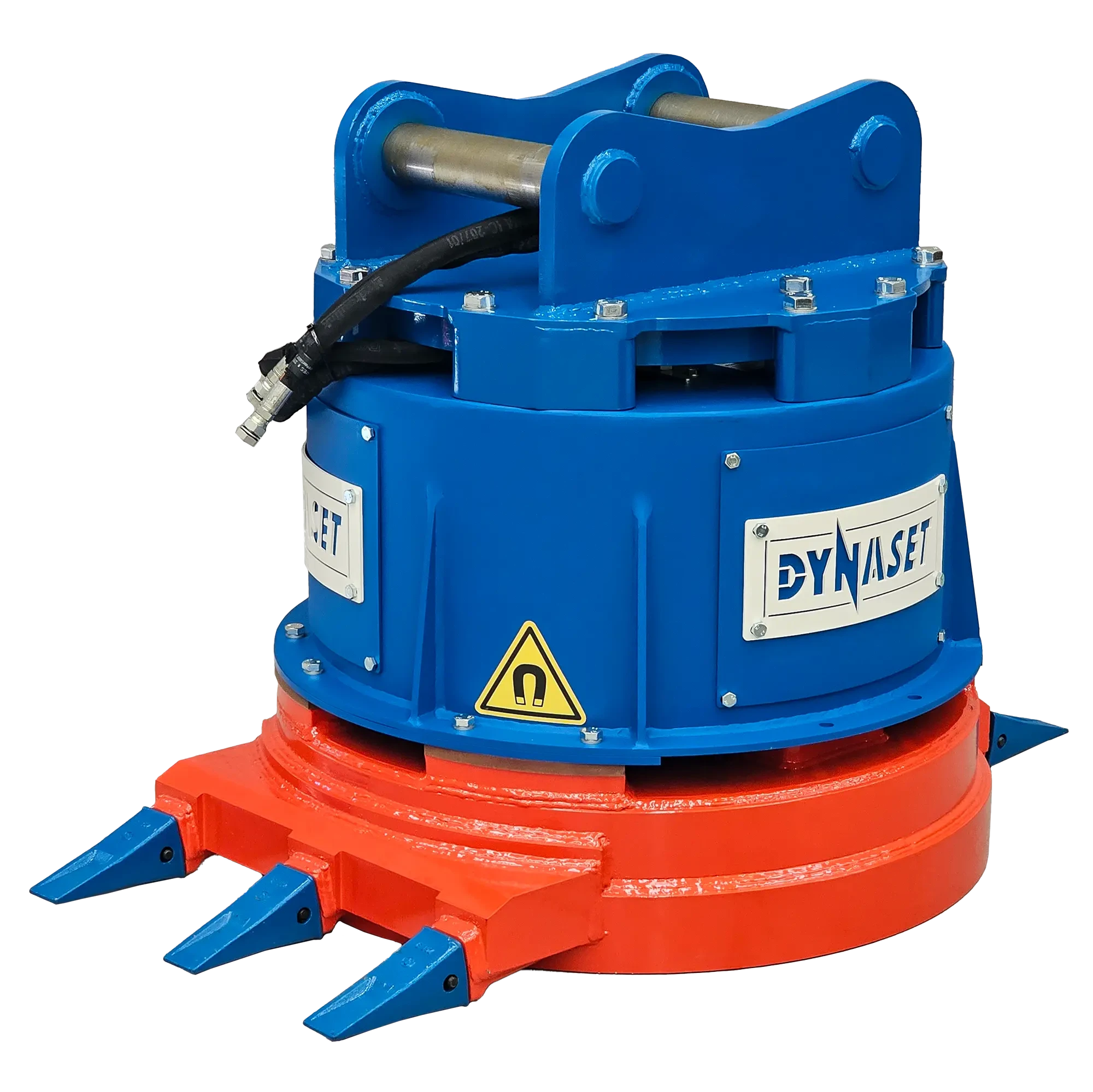

Our hydraulic-driven lifting magnets are a complete all-in-one unit with an integrated magnet generator. An ideal attachment for demolition and recycling contractors turning their scrap metal into profit. Increase your productivity with a true plug-and-play magnet, ready to be used straight from the box in any application.


Features:

  • Quick easy connection to existing auxiliary hydraulic lines on the excavator mean the magnet can be swapped between machines quickly and easily.
  • World’s fastest demagnetising time of 0.8 seconds.
  • Compact all in-one-unit and with a durable, waterproof design.
  • No external electric cable, reducing health and safety risks.
  • The generator is fully enclosed inside the HMAG PRO’s steel housing preventing debris damage.
  • Rubber mounted generator to absorb vibrations.
  • The hydraulic generator has an integrated hydraulic flow limiter and pressure reducer to protect it from overspeed.
  • Comes standard with hydraulic hoses and lifting chains.



Options:

  • Wireless control display.
  • Welded claws for sorting through rubble.
  • Excavator quick hitch mount.
  • Grapple mount.
