Model Weight Max Air Flow Max Air Pressure Air Tank Reservoir Hydraulic Flow
  (kg) (cfm) (psi) (L) (l/min)
KH-450 35 16 115 4.3 15
HK-1000 80 35 175 14 35

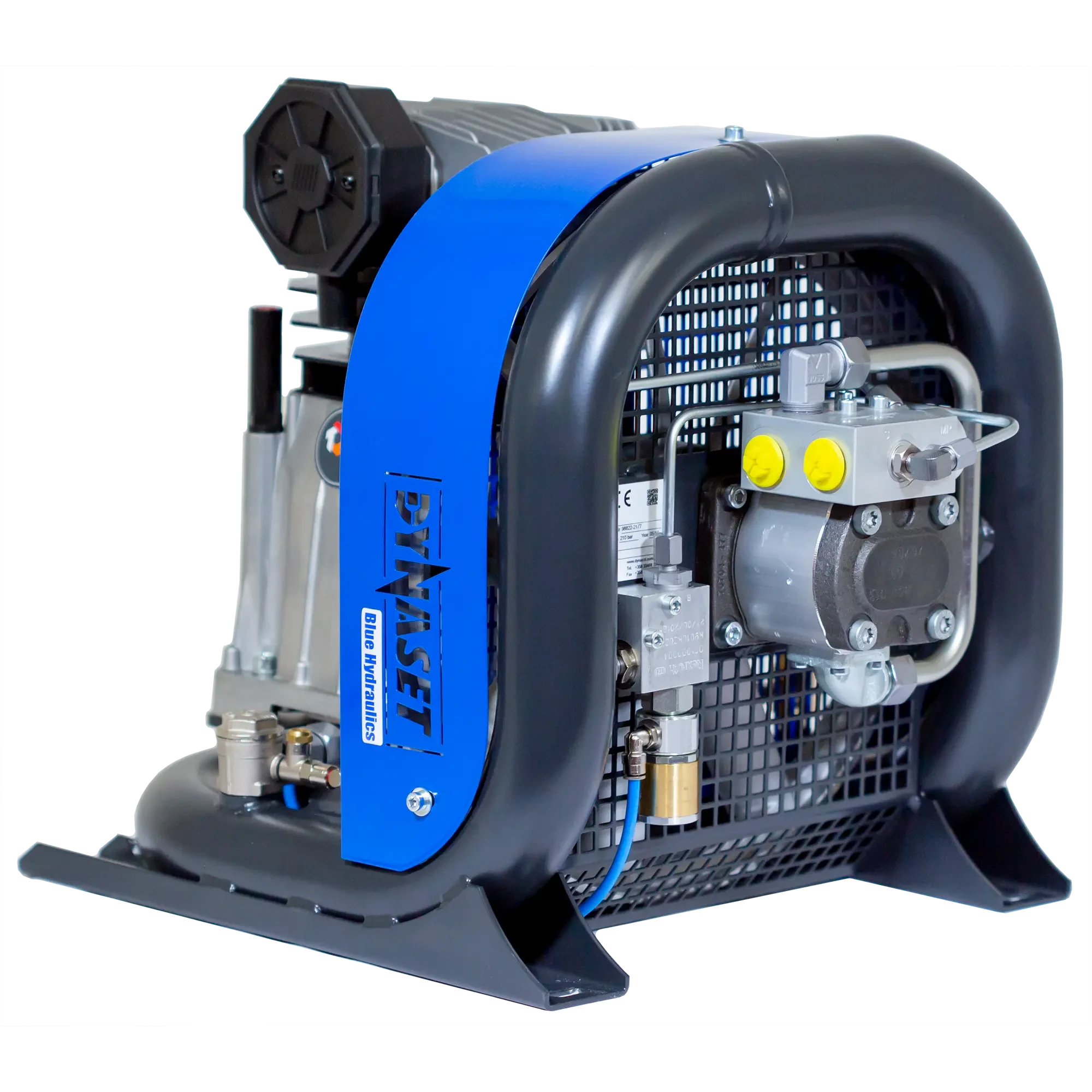

Hydraulic Piston Air Compressors

Simple to install and easy to operate are just two reasons why our hydraulic piston air compressors are trusted by many contractors and service companies around the world. A fully integrated air reservoir adds to the already ultracompact design saving every inch of valuable storage space. With models ranging from 15 to 35 cfm, you can remove large and unreliable auxiliary engines by installing one of the most versatile pieces of equipment.


  • The fully integrated hydraulic motor removes the need for an auxiliary engine, saving on capital and operational expenditure.
  • An ultra-low maintenance design reduces downtime and operating costs.
  • Easy to install and operate on any hydraulic system.
  • The simple and robust structure increases reliability.
  • The design is much more compact than traditional piston compressors with similar output.
  • Best suited for applications with intermittent use.
  • The air reservoir is built into the compressor’s frame, reducing the overall size.
  • An optional pneumatic cut-off valve automatically bypasses the hydraulic flow once set air pressure has been reached, making the compressor more efficient.
  • The integrated air cooler ensures maximum reliability even in extreme conditions.


  • Hydraulic installation valves.
  • Pneumatic-controlled unloader valve.
  • Electrical-controlled pressure cut off valve.
  • Pneumatic-controlled pressure cut off valve.
  • Solenoid valve to start and stop the compressor.
  • High-capacity cyclone air filter.
  • Additional breather tank.
  • Compressed air aftercooler.
  • Additional hose reels and accessories.

Enquire about Hydraulic Piston Air Compressors

For more information about the Hydraulic Piston Air Compressors fill in the form below.
