Specifications:

Model Weight Diameter Absorbed Power Lifting Capacity - Slabs Lifting Capacity - Scrap
  (kg) (mm) (kW) (kg) (kg)
ESM75 400 750 2.8 3,000 110
ESM80 500 800 3 3,600 130
ESM95 710 950 5 5,000 175
ESM105 840 1,050 6 5,500 230
ESM110 950 1,130 7 6,250 270
ESM125 1,300 1,250 8 7,000 340
ESM145 1,750 1,450 10 10,000 530
ESM150 2,150 1,500 12 10,500 550
ESM160 2,700 1,610 15 11,500 570
ESM190 3,800 1,900 20 22,500 750

Resources

Attachments

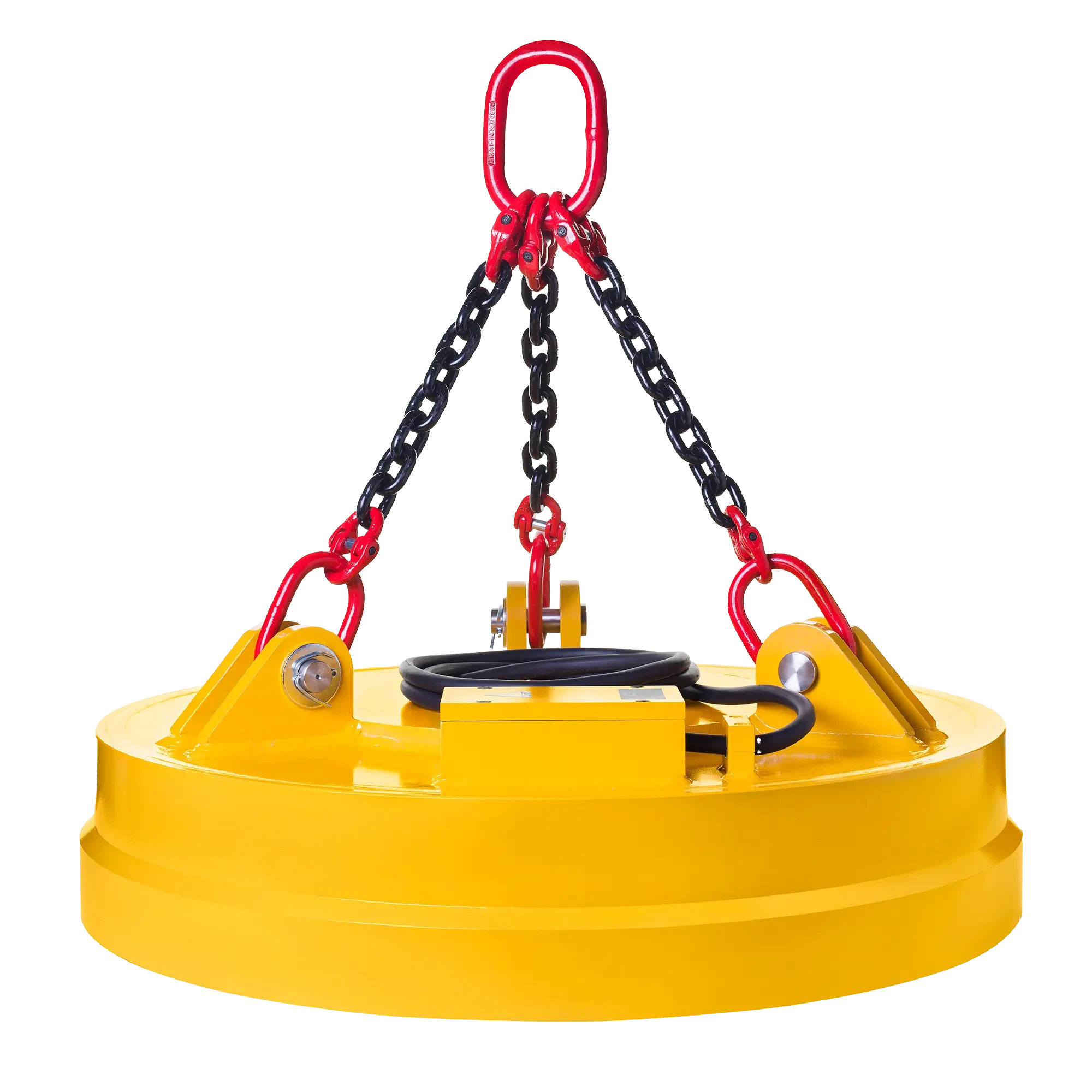

Electro Magnets

Turning scrap into profit

We have a large range of standalone lifting magnets available for all applications. Commonly used in the recycling and steel manufacturing industries, our magnets are the ultimate attachment for material handlers and excavators. With the ability to turn scrap into profit these magnets are a must for operators that want to speed up their operation while minimising waste.


Features:

  • A large range of models to suit many applications.
  • Cast or welded cases available depending on application.
  • The rugged case provides supplementary durability and lowers electromagnet heating.
  • Heavy duty wire and advanced insulation methods are used in the coil which reduces possibility of a short circuit.
  • A heat insulation gasket provides additional coil protection during operations with hot loads.
  • A heavy duty stell bottom plate protects the coil and significantly increases electromagnet service life.
  • High grade sealing compound prevents coil damage and reduces heating of the electromagnet coil.
  • Easy to install and use with a single plug connection.
  • Magnetic power reduction feature available.
  • Standard models include lifting chains and an electrical cable connection..
